Categories
New products
-
Lens Ring Joint Gasket
Kaxite specialized in Supplying & Manufacturing Lens Ring Joint Gasket, timely delivery short 5-10 Days, Custom Lens Ring Joint Gasket, Better choice selecting Kaxite sealing.
-
Double Jacket Gasket
Kaxite specialized in Supplying & Manufacturing Double Jacket Gasket, timely delivery short 5-10 Days, Custom Double Jacket Gasket, Better choice selecting Kaxite sealing.
-
Corrugated Gaskets
Kaxite specialized in Supplying & Manufacturing Corrugated Gaskets, timely delivery short 5-10 Days, Custom Corrugated Gaskets, Better choice selecting Kaxite sealing.
-
PTFE Envelope Gasket
Kaxite specialized in Supplying & Manufacturing PTFE Envelope Gasket, timely delivery short 5-10 Days, Custom PTFE Envelope Gasket, Better choice selecting Kaxite sealing.
-
Rubber Sheet
Kaxite specialized in Supplying & Manufacturing Rubber Sheet, timely delivery short 5-10 Days, Custom Rubber Sheet, Better choice selecting Kaxite sealing.

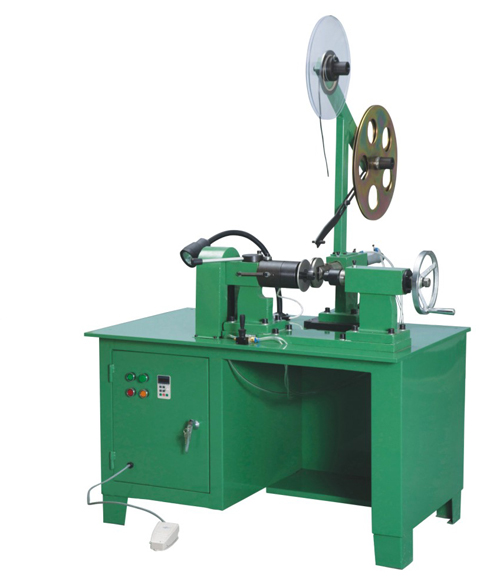

Winding Machine For Small Size SWG
Suitable to produce 1/2"-6" SWG with or without inner ring (Gasket diameter 15MM-200MM)
| Specification as following: | |
| STYLE | KXT E200A winding machine for small size SWG |
| Producing ability | 1/2"—6" spiral wound gasket with or without inner ring |
| SWG thickness | 4.5mm (also suitable for 2.5mm, 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding) |
| Maximum gasket OD | 200mm |
| Minimum gasket ID | 15mm |
| Gasket OD tolerance | ±0.5mm |
| Spindle motor rotation speed | 0--240rpm |
| Total power | 2.2kw |
| Spindle motor power | 0.75kw |
| Power supply | 380V/220V as request, 3 phases |
| Air compressor | 0.6—0.8 MPA |
| Frequency Converter | 2.2G |
| Machine measurement | 1200*850*1650mm |
| Machine net weight | 280kg |
