A Mica Sheet is a naturally occurring or synthetically produced insulating material known for its exceptional thermal stability, electrical insulation, and mechanical strength. Composed primarily of potassium aluminum silicate hydroxide fluoride, mica is split into thin, flexible, yet durable sheets. These sheets are indispensable in industries where high temperatures, electrical stresses, and demanding environments are commonplace. At Kaxite, we specialize in manufacturing premium-grade mica sheets that meet the rigorous standards of modern engineering and electronics.
The superiority of mica as an industrial material stems from its unique combination of physical and chemical properties. Kaxite mica sheets leverage these inherent advantages, providing reliable performance where other materials fail.
To ensure you select the perfect material for your application, Kaxite offers mica sheets in various grades and compositions. Below are the detailed parameters for our standard product lines.
Muscovite mica, known for its high clarity and excellent electrical properties, is the most commonly used type.
| Parameter | Typical Value / Range | Test Method / Notes |
|---|---|---|
| Thickness Tolerance | ±0.02mm to ±0.05mm | Standard range; tighter tolerances available |
| Continuous Use Temperature | Up to 600°C (1112°F) | Short-term peaks up to 800°C |
| Dielectric Strength | 150 - 200 kV/mm | ASTM D149 |
| Volume Resistivity | 1014 - 1016 Ω·cm | ASTM D257 |
| Density | 2.6 - 2.9 g/cm³ | ASTM D792 |
Phlogopite mica offers superior thermal stability, making it the preferred choice for very high-temperature applications.
| Parameter | Typical Value / Range | Test Method / Notes |
|---|---|---|
| Thickness Tolerance | ±0.03mm to ±0.08mm | Varies with thickness |
| Continuous Use Temperature | Up to 1000°C (1832°F) | Superior high-temperature performance |
| Dielectric Strength | 120 - 180 kV/mm | ASTM D149 |
| Volume Resistivity | 1013 - 1015 Ω·cm | ASTM D257 at 500°C | Thermal Conductivity | 0.3 - 0.6 W/m·K | Provides good heat dissipation |

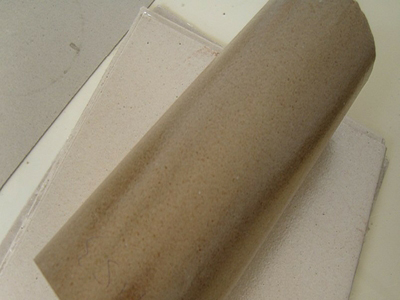

These are reinforced mica sheets bonded with silicone resin or other inorganic binders, offering enhanced flexibility and handling ease.
| Parameter | Typical Value / Range | Test Method / Notes |
|---|---|---|
| Binder Type | Silicone Resin, Inorganic Silicate | Determines flexibility & max temperature |
| Reinforcement | Fiberglass Cloth, Polyester Film | Adds mechanical strength |
| Continuous Use Temperature | 500°C - 800°C (932°F - 1472°F) | Depends on binder system |
| Flexibility | Excellent - Can be wrapped | Ideal for complex shapes |
| Standard Thickness | 0.1mm - 3.0mm | Wide range available |
The versatility of Kaxite mica sheets makes them suitable for a vast array of critical applications across multiple sectors.
Q: What is the main difference between muscovite and phlogopite mica sheets?

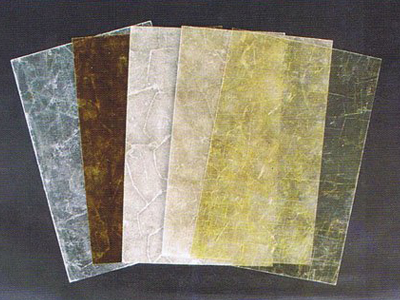

A: The primary difference lies in their thermal and chemical composition. Muscovite mica (clear/white) has excellent electrical properties and good thermal resistance up to approximately 600°C. Phlogopite mica (amber/brown) contains more iron and magnesium, giving it superior thermal stability, allowing it to perform continuously at temperatures up to 1000°C. For applications involving extreme heat, such as in steel plants or high-wattage heating elements, Kaxite recommends phlogopite. For high-voltage electrical insulation at moderate temperatures, muscovite is often the optimal choice.
Q: Can Kaxite mica sheets be cut, punched, or machined into custom shapes?
A: Yes, absolutely. Kaxite mica sheets can be precision-fabricated to meet specific design requirements. They can be cleanly cut with laser cutters, die-punched, stamped, or machined using CNC equipment. We offer comprehensive custom fabrication services, including complex shapes, precise holes, slots, and notches. It is important to use sharp, hard tools to achieve clean edges and minimize delamination or fraying. Our technical team can advise on the best machining practices for your specific grade of mica sheet.
Q: How does the performance of a mica sheet compare to modern plastic films like polyimide (Kapton)?
A: While high-performance plastic films offer excellent flexibility and good properties, mica sheets have distinct advantages. Mica is inherently non-flammable and will not melt or drip, whereas most plastics have a much lower continuous temperature rating and can burn. Mica's dielectric strength and volume resistivity remain stable over a wider temperature range. It is also more resistant to partial discharge (corona) degradation. For the most demanding applications involving very high temperatures, open flames, or long-term reliability under electrical stress, a Kaxite mica sheet is often a more robust and durable solution.
Q: Are Kaxite mica sheets resistant to radiation and UV exposure?
A: Natural mica sheets exhibit excellent resistance to gamma radiation and beta particles, making them suitable for certain nuclear applications. They are also highly resistant to degradation from ultraviolet (UV) light, unlike many organic polymers that can become brittle and crack. This UV stability, combined with its thermal properties, makes mica a reliable material for outdoor or aerospace applications where long-term exposure to sunlight is a factor.
Q: What are the available forms and sizes for standard Kaxite mica sheets?
A: Kaxite supplies mica sheets in a variety of standard and custom forms. We stock natural mica sheets (muscovite and phlogopite) in sheets and rolls, with common thicknesses ranging from 0.03mm to 3mm. Standard sheet sizes often include 1000mm x 500mm, 1200mm x 600mm, and custom dimensions. Our flexible composite mica sheets (silicone bonded) are typically supplied in rolls up to 50 meters in length and widths up to 1000mm. For large-volume OEM projects, we can manufacture to virtually any size specification.
Q: How should I store and handle mica sheets to prevent damage?
A: Proper storage ensures optimal performance. Kaxite mica sheets should be stored in a cool, dry environment away from direct moisture. While mica is not hygroscopic, prolonged exposure to humidity can potentially affect bonded composites. Sheets should be stacked flat, not on edge, to prevent bending or cracking. Avoid dragging or abrading the surface, as this can create fine particles. When handling, clean, dry gloves are recommended to prevent oil contamination from skin. For flexible grades, avoid sharp folding or creasing which could stress the binder system.
Q: Does Kaxite offer mica sheets with adhesive backing for easy installation?
A: Yes, we provide a range of pressure-sensitive adhesive (PSA) backed mica sheets and tapes. These are ideal for applications requiring quick, secure bonding to metal, ceramic, or other surfaces in electrical assemblies or as thermal barriers. Our PSA systems are carefully selected to maintain their bond strength at elevated temperatures. It is crucial to specify your operating temperature range when ordering adhesive-backed products to ensure the adhesive is compatible with your application's thermal profile.
