PTFE Gaskets, or Polytetrafluoroethylene Gaskets, represent a pinnacle in sealing technology. They are crafted from a synthetic fluoropolymer renowned for its exceptional chemical inertness and wide temperature range. Industries worldwide rely on these gaskets to create secure, leak-proof seals in the most demanding environments where other materials would fail. At Kaxite, we engineer our PTFE gaskets to meet the rigorous standards of modern processing, pharmaceutical, chemical, and food production applications. The inherent properties of PTFE provide a combination of benefits unmatched by traditional sealing materials.
The superiority of Kaxite PTFE Gaskets stems from the fundamental characteristics of the PTFE polymer. Our material selection and processing ensure these properties are fully realized in every gasket we produce.
To specify the correct gasket for your application, understanding the key technical parameters is essential. Below are the critical specifications for our standard virgin PTFE material.
| Property | Metric Value | Imperial Value | Test Standard |
|---|---|---|---|
| Density | 2.15 - 2.20 g/cm³ | 0.077 - 0.079 lb/in³ | ASTM D792 |
| Tensile Strength | 25 - 35 MPa | 3625 - 5075 psi | ASTM D638 |
| Elongation at Break | 300 - 500 % | 300 - 500 % | ASTM D638 |
| Compression Set (24h @ 25°C) | 40 - 50 % | 40 - 50 % | ASTM D395 |
| Continuous Service Temperature | -200°C to +260°C | -328°F to +500°F | — |
| Thermal Conductivity | 0.25 W/m·K | 1.73 BTU·in/(hr·ft²·°F) | ASTM C177 |
| Coefficient of Friction (Static) | 0.04 - 0.1 | 0.04 - 0.1 | ASTM D1894 |
| Dielectric Strength | 60 kV/mm | 1525 V/mil | ASTM D149 |

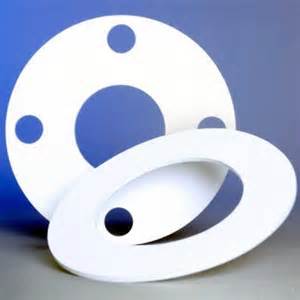

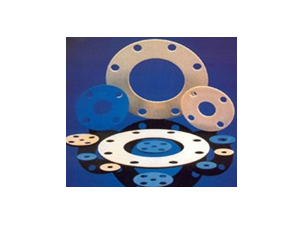

Kaxite manufactures a comprehensive range of PTFE gasket styles to suit every flange type and application requirement. Each style is precision-cut from high-quality PTFE sheet or skived film.
Proper installation is paramount to achieving a leak-free seal with PTFE gaskets. Following Kaxite's recommended procedures will ensure maximum service life and reliability.
Q: What is the main advantage of PTFE over rubber gaskets like EPDM or Nitrile?
A: The primary advantage is universal chemical resistance and a much wider temperature range. While rubber gaskets excel in elasticity for specific fluids, they degrade quickly in harsh chemicals or extreme temperatures. PTFE is inert to almost everything and handles deep cryogenics to high heat, making it a versatile, high-performance choice.
Q: Can Kaxite PTFE gaskets be used for steam service?
A: Yes, virgin PTFE gaskets are excellent for saturated steam service within their temperature rating (up to 260°C / 500°F). For superheated steam, careful consideration of pressure and temperature is required. It is crucial to use properly designed flanges and follow correct bolt torquing procedures to manage PTFE's creep relaxation under sustained heat and pressure.
Q: Are there any chemicals that attack or degrade PTFE?
A: Virgin PTFE is resistant to virtually all industrial chemicals. The only known exceptions are extremely reactive substances like elemental fluorine, chlorine trifluoride, and molten alkali metals (e.g., sodium) under high pressure and temperature. For nearly all other applications, including strong acids like sulfuric and hydrochloric, and strong bases like sodium hydroxide, PTFE is the preferred material.
Q: What is "creep relaxation" and how does it affect PTFE gaskets?
A: Creep relaxation, or cold flow, is the tendency of PTFE to slowly deform under a constant load over time. In a gasket, this can lead to a loss of bolt load and potential leakage. Kaxite mitigates this by ensuring proper gasket thickness selection and stress calculation. Installation using a multi-stage cross-bolt torque pattern and scheduled re-torquing are essential practices to maintain a tight seal.
Q: What is the difference between virgin PTFE and filled PTFE gaskets?

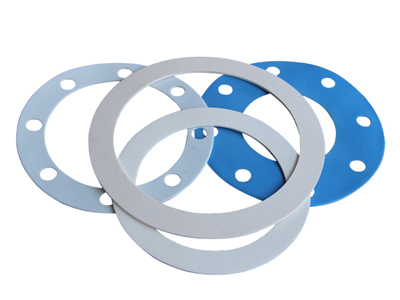

A: Virgin PTFE is the pure polymer, offering the best chemical resistance and purity. Filled PTFE compounds have additives like glass fiber, carbon, graphite, or bronze mixed in. These fillers improve mechanical properties like creep resistance, hardness, and wear, but can slightly reduce chemical resistance in certain media. Kaxite offers both, and our experts can help you select the optimal material.
Q: How do I choose the right thickness for my PTFE gasket?
A: Standard thicknesses are 1.5mm (1/16") and 3mm (1/8"). Thinner gaskets (e.g., 0.5mm skived tape) are for low-pressure, delicate flanges or as liners. Thicker gaskets may be used for uneven flange faces but require higher bolt load to seal. The flange type, surface finish, pressure, and bolt load capacity dictate the ideal thickness. Kaxite's engineering support can assist with this selection.
Q: Are Kaxite PTFE gaskets suitable for food, pharmaceutical, and ultra-pure applications?
A> Absolutely. Our virgin PTFE gaskets are manufactured from FDA-compliant raw materials. They meet relevant standards for food contact (FDA 21 CFR), pharmaceutical processing (USP Class VI), and high-purity water systems. Their non-stick, non-contaminating surface prevents bacterial growth and allows for thorough cleaning and sterilization (e.g., SIP/CIP processes).
Q: Can you manufacture custom-sized or special shape PTFE gaskets?
A> Yes, custom manufacturing is a core service at Kaxite. We can produce gaskets in any size, shape, or profile using precision die-cutting, CNC machining, or water-jet cutting. Simply provide us with a sample, a detailed drawing, or precise dimensions, and we will deliver a gasket that fits your equipment perfectly.
