In complex piping and flanged joint systems, controlling stray electrical currents and preventing galvanic corrosion is not just a maintenance concern—it's a critical safety and operational imperative. This is where Flange Insulation Gasket Kits become an indispensable engineering solution. These comprehensive kits are designed to electrically isolate flanged connections, effectively breaking the path for corrosive currents while maintaining a pressure-tight seal. For engineers, maintenance supervisors, and procurement specialists across oil & gas, chemical processing, water treatment, and marine industries, specifying the correct insulation kit is vital for system integrity, personnel safety, and long-term asset protection. Kaxite, with decades of specialization in high-performance sealing and insulation solutions, manufactures flange insulation gasket kits that meet the most demanding international standards and application challenges.

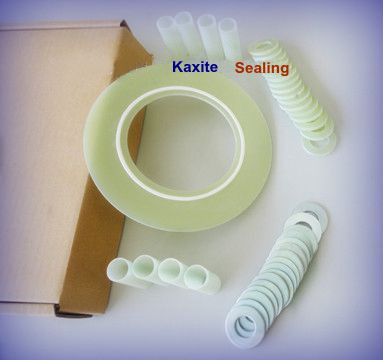

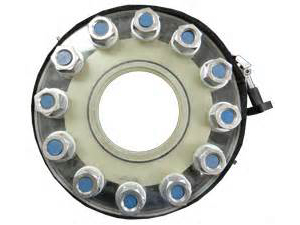

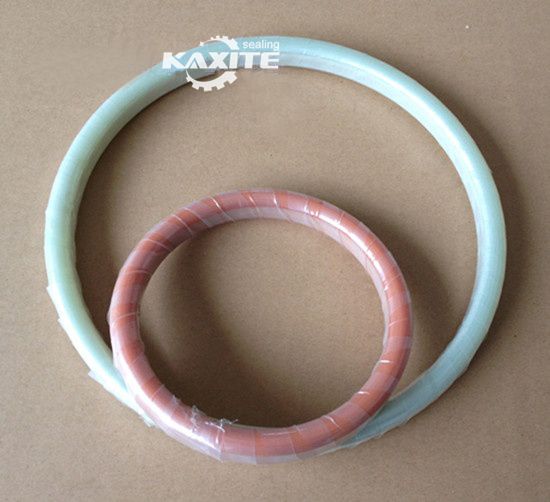

A Flange Insulation Gasket Kit is a complete set of components engineered to electrically isolate a flanged connection. Its primary purpose is to prevent galvanic corrosion, which occurs when dissimilar metals in contact with an electrolyte (like water or process fluid) create a battery effect, leading to rapid metal degradation. Additionally, these kits mitigate damage from cathodic protection systems and stray currents. A typical kit is much more than just a gasket; it is a system comprising:
Kaxite kits are designed with a focus on material science, precision manufacturing, and field-proven reliability. We understand that failure in isolation can lead to catastrophic leaks, unplanned shutdowns, and expensive repairs. Our kits are tailored for specific service conditions, pressures, and temperatures.
| Component | Standard Material | Alternative/High-Performance Options | Key Properties |
|---|---|---|---|

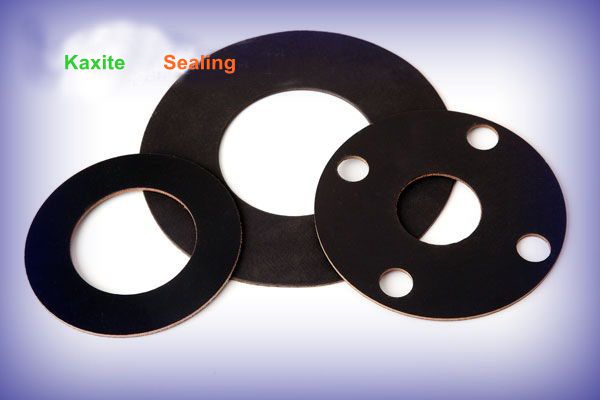

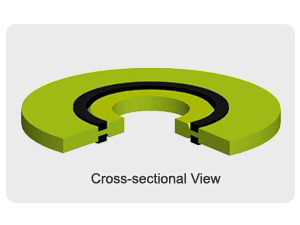

| Insulating Gasket | Glass Reinforced Epoxy (GRE) / GPO-3 | PTFE, PEEK, Fluorosilicone, Elastomer-faced | High dielectric strength, low water absorption, excellent compressive strength, chemical resistance. |
| Bushings & Sleeves | Phenolic, GRE | PTFE, PEEK, Ceramic | High crush resistance, electrical insulation, smooth surface for easy bolt installation. |
| Insulating Washers | Phenolic, GRE | PTFE, PEEK, Mica | High load-bearing capacity, maintains insulation under bolt torque. |
| Steel Washers | Carbon Steel (Zn plated) | Stainless Steel 304/316, Hot-Dip Galvanized | Provides structural support, prevents insulating washer embedment. |
| Bolts & Nuts | Carbon Steel (Zn plated) | Stainless Steel A2/A4, Alloy Steel | Full thread engagement, correct length for kit configuration. |
Selecting the right kit requires careful review of technical parameters. Below are the standard performance ranges for Kaxite standard GRE-based kits. For extreme conditions, consult our engineering team.
Q: When is a flange insulation gasket kit required?
A: A kit is essential in several scenarios: 1) Connecting pipelines or equipment made of dissimilar metals (e.g., carbon steel to stainless steel). 2) Isulating flanges in pipelines protected by impressed current cathodic protection to prevent current drain. 3) In systems where stray electrical currents from railways or other sources are suspected. 4) At critical safety points in plants to limit the spread of corrosion. 5) For isolation of meters, tanks, and sensitive equipment from the pipeline network.
Q: Can I just use an insulating gasket without the full kit of bushings and washers?
A: No, this is a common and critical mistake. The gasket only insulates between the flange faces. Without insulating bushings and washers, the bolts create a direct metal-to-metal electrical contact between the two flanges, completely bypassing the insulation provided by the gasket. This renders the isolation ineffective. A complete kit is mandatory for proper circuit isolation.
Q: How do I install a Kaxite insulation gasket kit correctly?
A: Proper installation is key. Ensure flange faces are clean, aligned, and undamaged. Slide insulating sleeves onto each bolt. Insert bolts through one flange. Place the insulating gasket between the flanges. Bring the flanges together. On the opposite side, add an insulating washer, then a steel washer, followed by the nut. Hand-tighten all nuts, then use a cross-torque pattern to tighten to the recommended torque value for the bolt size and material. Do not over-torque, as this can crush or crack the insulating components.
Q: How do I test if an installed flange insulation kit is working?
A: The standard field test is a continuity or resistance check using a multimeter. Test from one pipe side to the other across the insulated flange. You should measure a very high resistance (typically in the megaohm range), indicating no electrical continuity. A low resistance reading indicates a short circuit, meaning the insulation has failed or was installed incorrectly (e.g., a forgotten steel washer causing contact). Regular testing is part of a good integrity management program.
Q: Are these kits reusable?
A: Generally, Kaxite does not recommend reusing the insulating components. The gasket, bushings, and washers undergo compression and may have taken a "set" or sustained micro-fractures during initial installation and service. Reuse can compromise the dielectric strength and sealing integrity. Bolts, nuts, and steel washers can often be reused if they are in good condition and within torque specifications.
Q: What certifications do Kaxite kits hold?
A: Kaxite kits are manufactured under a strict quality management system (ISO 9001 certified). Materials are tested to meet ASTM standards (e.g., ASTM D229 for electrical properties). We can provide kits that comply with NACE MR0175/ISO 15156 for sour service, ATEX/IECEx for explosive atmospheres, and are approved for use by major oil companies and engineering contractors worldwide. Material certificates and test reports are available upon request.
Q: Can you provide custom kits for special applications?
A: Absolutely. Kaxite's engineering strength lies in solving unique challenges. We regularly manufacture kits for exotic materials (Hastelloy, Titanium flanges), extreme temperatures (cryogenic to high-heat), unusual geometries, and for sealing challenging media like chlorine, HF acid, or ultra-pure chemicals. Contact our technical team with your flange specs, service conditions, and any applicable standards.
| Application | Recommended Kaxite Kit Series | Primary Consideration |
|---|---|---|
| Standard Water, Oil, Gas Pipelines (Carbon Steel) | KX-ISOG (GRE Standard) | Cost-effectiveness, general chemical resistance. |
| Chemical Processing, Acid Service | KX-ISOP (PTFE/PEEK Core) | Maximum chemical inertness. |
| High Temperature Steam Lines | KX-ISOM (Mica/Graphite based) | Stability and sealing at elevated temperatures. |
| Marine/Saltwater Environments | KX-ISOSS (Stainless Steel components with specialized sleeves) | Corrosion resistance of metallic parts. |
| Cathodic Protection Test Points | KX-ISOCP (Compact, pre-assembled) | Ease of installation and frequent testing. |
