For industries operating in extreme thermal environments, efficient and reliable insulation is not a luxury—it’s a necessity. Ceramic fiber, a lightweight refractory material, stands as a cornerstone of modern high-temperature insulation technology. Engineered from alumina-silica materials, ceramic fiber products offer exceptional thermal stability, low thermal conductivity, and superior resistance to thermal shock. At Kaxite, we specialize in manufacturing premium-grade ceramic fiber designed to enhance safety, improve energy efficiency, and extend equipment lifespan across diverse industrial applications, from furnace linings and boiler insulation to aerospace and automotive components.
Our commitment at Kaxite is to provide more than just a product; we deliver engineered solutions. By leveraging advanced manufacturing techniques and rigorous quality control, Kaxite ceramic fibers ensure consistent performance under the most demanding conditions. This guide delves into the technical specifications, product forms, and practical applications of ceramic fiber, alongside addressing common industry questions, to help you select the optimal insulation for your specific operational needs.
The exceptional performance of ceramic fiber stems from its intrinsic material properties. Kaxite ceramic fibers are primarily composed of high-purity alumina (Al2O3) and silica (SiO2), which are melted and spun or blown into a fibrous structure. This unique composition grants it a set of characteristics critical for high-temperature insulation.
Kaxite ceramic fiber is available in multiple forms to suit various application methods and design requirements. Each product form is engineered to deliver optimal performance for its intended use. Below is a detailed breakdown of our primary product lines and their key parameters.

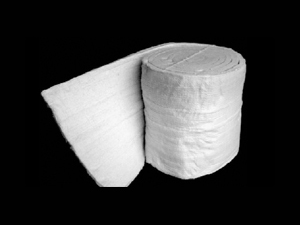

The most versatile form, used for lining furnaces, kilns, and high-temperature equipment. Available in rolls of varying densities, thicknesses, and temperature grades.
| Grade | Max Continuous Use Temperature | Density (kg/m³) | Standard Thickness (mm) | Thermal Conductivity (W/m·K at 500°C) | Typical Application |
|---|---|---|---|---|---|
| Standard (1260°C) | 1260°C (2300°F) | 64, 96, 128 | 12.5, 25, 50 | 0.12 | General furnace backup lining, heat shields |
| High-Purity (1400°C) | 1400°C (2552°F) | 96, 128 | 25, 50 | 0.15 | Forging furnaces, petrochemical heaters |
| Zirconia (1600°C) | 1600°C (2912°F) | 128 | 25, 50 | 0.20 | High-temperature kilns (e.g., ceramic sintering), steel industry ladles |

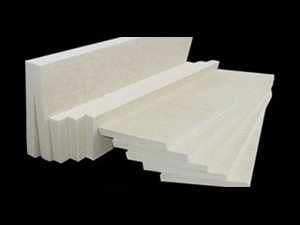

Rigid boards with excellent structural integrity, used where compressive strength and a hard surface are required. Ideal for hot-face lining in aggressive environments.
| Product Type | Max Continuous Use Temperature | Density (kg/m³) | Compressive Strength (MPa) | Standard Sizes (mm) |
|---|---|---|---|---|
| Standard Board | 1260°C (2300°F) | 280 - 320 | 1.0 - 1.5 | 1200 x 1000 x 10-50 |
| High-Alumina Board | 1400°C (2552°F) | 320 - 350 | 1.5 - 2.0 | 1200 x 1000 x 10-50 |

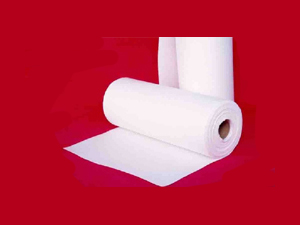

Thin, flexible sheets used for gasketing, wrapping, and as a high-temperature seal. Kaxite ceramic fiber paper offers excellent uniformity and surface finish.

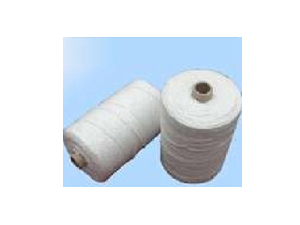

Woven products reinforced with high-temperature alloy wire or glass filament for added tensile strength. Essential for flexible seals, curtains, and protective clothing.
| Textile Product | Composition | Max Temperature | Common Uses |
|---|---|---|---|

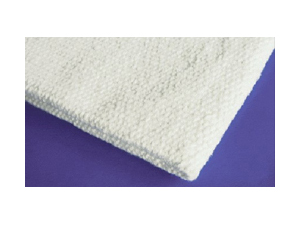

| Ceramic Fiber Cloth | Fiber + Inconel wire / glass filament | 1260°C | Furnace curtains, weld blankets, fire protection |

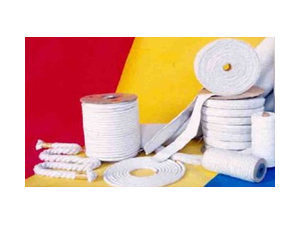

| Ceramic Fiber Rope | Braided or twisted fiber | 1260°C - 1600°C | Door seals, expansion joint packing |

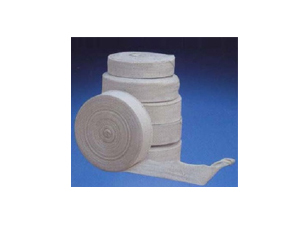

| Ceramic Fiber Tape | Woven tape with reinforcement | 1260°C | Bundling, sealing, insulation wrapping |
Pre-fabricated, folded blocks that simplify and speed up the installation of furnace linings. They provide a uniform hot-face surface with minimal joints.
Based on decades of industry experience at Kaxite, we address the most frequently asked questions regarding ceramic fiber selection, handling, and application.
A: The key difference lies in form, density, and application method. Blankets are flexible rolls used for lining curved or straight surfaces, offering good handling and thermal performance. Boards are rigid, high-density panels with good compressive strength, used where a hard, durable surface is needed (e.g., hearths). Modules are pre-assembled, folded blanket units mounted on a backing plate, designed for rapid, uniform furnace wall installation with minimal heat loss through seams. The choice depends on the equipment geometry, required surface strength, and installation logistics.
A: Selecting the correct grade requires knowing the maximum continuous operating temperature of your equipment, not just the occasional peak. For instance, if your process runs at 1150°C, a standard 1260°C grade from Kaxite is suitable, providing a safe margin. If you operate consistently above 1300°C, a high-purity (1400°C) or zirconia-enhanced (1600°C) grade is necessary to prevent excessive shrinkage and degradation. Always consult Kaxite technical data sheets which detail the linear shrinkage and permanent linear change for each grade at various temperatures.
A: New, uninstalled ceramic fiber products are classified as irritants. The fibers can be brittle and may generate airborne dust during cutting and handling. Kaxite recommends using appropriate personal protective equipment (PPE) including safety glasses, gloves, and a NIOSH-approved dust mask (N95 or equivalent). Work in well-ventilated areas. Once installed and heated, the fibers become more crystalline and less friable, but caution is always advised during maintenance or removal of old linings. Always follow OSHA or local safety guidelines for handling refractory ceramic fibers.
A: Ceramic fiber is an excellent insulator against radiant heat but is not designed to be a direct flame barrier like a refractory concrete. For direct flame impingement, a hard ceramic face coating or a different refractory material may be required. Regarding corrosive atmospheres, ceramic fiber has good resistance to most acids but can be attacked by strong alkalis (e.g., caustic soda), hydrofluoric acid, and phosphate vapors. For such environments, Kaxite offers advice on potential coatings or alternative material recommendations during the design phase.
A: Installation method varies by product form. Blankets are typically layered and secured using high-temperature alloy anchors (e.g., studs and washers) welded to the steel shell. Boards are mechanically fastened with anchors or adhesive. Modules come with pre-attached anchors for swift installation onto a corresponding grid welded to the shell. Proper anchor material, density, and spacing are critical to withstand thermal cycling and prevent lining failure. Kaxite provides detailed installation manuals and technical support for all major product forms.
A: Kaxite ceramic fiber offers several distinct advantages: Weight: It is up to 75% lighter than IFB, reducing structural load. Thermal Efficiency: Lower thermal conductivity and thermal mass lead to faster heat-up/cool-down and higher energy savings. Installation: Easier and faster to install, especially modules and blankets. Thermal Shock Resistance: Superior performance in cycling operations, eliminating the risk of brick spalling. Design Flexibility: Can be easily cut and fitted around complex shapes and penetrations. For new constructions or linings, these factors often result in a lower total installed cost and improved operational efficiency.
A: Thermal conductivity is not a fixed value; it increases with rising temperature. For example, a Kaxite standard blanket with a conductivity of 0.12 W/m·K at 500°C might have a value of 0.25 W/m·K at 1000°C. Density also plays a role: higher density products generally have slightly higher conductivity at lower temperatures but can provide better resistance to heat penetration (lower "hot face to cold face" temperature differential) at very high temperatures due to reduced radiation through the matrix. Our technical data provides conductivity curves across the temperature range for each product.
The versatility of ceramic fiber makes it indispensable across a wide spectrum of high-temperature industries.
