Rubber gaskets are fundamental yet critical components, serving as the unsung heroes in a vast array of industrial, commercial, and residential applications. Their primary function is to create a reliable, static seal between two mating surfaces, preventing the leakage of fluids or gases and protecting systems from environmental contaminants like dust, dirt, and moisture. At Kaxite, with decades of specialized experience in polymer engineering, we understand that a gasket is more than just a piece of rubber—it's a precision-engineered solution for safety, efficiency, and longevity. This comprehensive guide delves into the technical specifications, material science, and application-specific considerations that define high-performance rubber gaskets.
Before exploring the technical details, it's essential to understand the core roles these components play:
These functions make rubber gaskets indispensable across industries:
The performance of a gasket is intrinsically linked to its material composition. Each elastomer offers a unique profile of chemical, thermal, and physical properties. Kaxite provides a comprehensive range of high-quality rubber materials to meet precise application demands.
| Material (ASTM D1418 Designation) | Key Characteristics | Temperature Range (Approx.) | Resistance Profile | Typical Applications |
|---|---|---|---|---|
| Nitrile Rubber (NBR) | Excellent resistance to oils, fuels, and hydrocarbons. Good mechanical properties. | -40°C to +120°C (-40°F to +248°F) | Excellent: Oils, fuels, aliphatic hydrocarbons. Poor: Ozone, weathering, ketones. | Automotive fuel systems, oil seals, hydraulic equipment. |
| Ethylene Propylene Diene Monomer (EPDM) | Superior weather, ozone, and steam resistance. Good water and chemical resistance. | -50°C to +150°C (-58°F to +302°F) | Excellent: Hot water, steam, alkalis, weathering. Poor: Oils, solvents. | HVAC systems, plumbing seals, outdoor electrical enclosures, radiator seals. |
| Fluoroelastomer (FKM/Viton®) | Exceptional high-temperature and chemical resistance. Excellent sealing force retention. | -20°C to +230°C (-4°F to +446°F) | Excellent: Oils, fuels, acids, aromatics, high temperatures. Poor: Ketones, esters, amines. | Aerospace, chemical processing, automotive under-hood high-temp seals. |
| Silicone Rubber (VMQ) | Extremely wide temperature range, flexible at low temps, inert and stable. | -60°C to +230°C (-76°F to +446°F) | Excellent: Extreme temperatures, oxygen, ozone. Fair: Acids, alkalis. Poor: Fuels, solvents. | Medical devices, food processing, high/low-temp gasketing, appliance seals. |
| Neoprene (CR) | Good all-around resistance to weathering, moderate oils, and flame. | -40°C to +100°C (-40°F to +212°F) | Good: Weathering, ozone, moderate oils, flame. Fair: Acids, alkalis. | General-purpose industrial gaskets, refrigeration, marine applications. |
| Natural Rubber (NR) | High tensile strength, excellent elasticity and abrasion resistance. | -50°C to +80°C (-58°F to +176°F) | Good: Abrasion, cold flow. Poor: Ozone, oils, fuels, weathering. | Low-pressure sealing, anti-vibration mounts, adhesive applications. |
Beyond material selection, precise specifications ensure the gasket performs as intended in its operating environment. Kaxite gaskets are manufactured to exacting standards, with key parameters detailed below.
| Parameter | Test Standard | Typical Range for Kaxite Gaskets | Importance for Application |
|---|---|---|---|
| Hardness (Shore A) | ASTM D2240 | 40 ±5 to 80 ±5 | Determines seal conformity and pressure resistance. |
| Tensile Strength | ASTM D412 | 5 - 20 MPa (725 - 2900 psi) | Indicates durability and resistance to tearing. |
| Elongation at Break | ASTM D412 | 100% - 600% | Measures flexibility and ability to withstand deformation. |
| Compression Set (22 hrs @ 70°C) | ASTM D395 Method B | 10% - 35% | Lower percentage = better long-term sealing force retention. |
| Temperature Range | Material Specific | -60°C to +230°C (-76°F to +446°F) | Defines the operational environment limits. |
| Fluid Resistance (Volume Swell) | ASTM D471 | <20% swell in specified fluids | Ensures dimensional stability and seal integrity when exposed to media. |
Q: How do I choose the right rubber material for my gasket application?
A: Selecting the correct material involves analyzing the operating environment. You must consider the primary media being sealed (e.g., oil, water, steam, chemicals), the operating temperature range (both continuous and peak), pressure conditions, and any exposure to UV light, ozone, or weathering. Cross-reference these factors with the material property tables (like the one provided above for Kaxite materials) to narrow down suitable elastomers. When in doubt, consult with a technical specialist at Kaxite who can recommend a compound based on your specific requirements.
Q: What is the difference between a gasket and an O-ring?

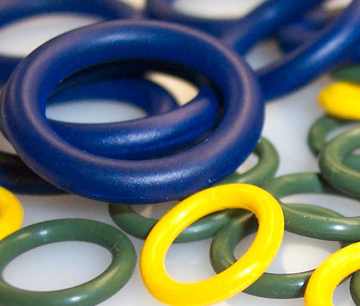

A: Both are seals, but their design and application differ. An O-ring is a torus (doughnut-shaped) seal designed to fit into a machined groove and create a seal through radial compression. It is typically used in dynamic applications (where parts move, like pistons) or static face seals. A gasket is generally a flat or formed sheet cut to sit between two flat, stationary flanges or surfaces, sealing via compressive force from bolts or clamps. Gaskets can be simple flat sheets, or have complex profiles like EMI shielding gaskets.
Q: Why does the hardness (durometer) of a rubber gasket matter?
A: Hardness is a critical factor affecting sealability and longevity. A softer gasket (e.g., 40-50 Shore A) will easily conform to surface imperfections, creating an excellent seal with lower bolt torque on uneven surfaces. However, it may be prone to extrusion under high pressure. A harder gasket (e.g., 70-80 Shore A) resists extrusion better and is more durable but requires flatter surfaces and higher clamping force to achieve an effective seal. The choice is a balance between surface conditions, pressure, and required conformability.
Q: What causes a rubber gasket to fail prematurely?
A: Premature failure can stem from several root causes:
Chemical Incompatibility: Swelling, shrinkage, or deterioration from exposure to an incompatible fluid.
Excessive Temperature: Hardening, cracking, or becoming brittle from exceeding the material's upper temperature limit, or losing elasticity from going below its lower limit.
Compression Set: Permanent deformation leading to loss of sealing force, often due to poor material choice for the temperature or inadequate relief in the design.
Improper Installation: Uneven bolt torque, misalignment, over-tightening (which can cut or crush the gasket), or under-tightening.
Environmental Attack: Ozone cracking or UV degradation if an unsuitable material (like regular NBR) is used outdoors.
Q: Can Kaxite manufacture custom-shaped gaskets, or do you only offer standard sizes?
A: Kaxite specializes in both standard and fully custom-engineered gasket solutions. We utilize advanced manufacturing processes including precision die cutting, waterjet cutting, laser cutting, and molding to produce gaskets in virtually any 2D shape or 3D profile. Whether you need a simple washer, a complex gasket for an electrical enclosure, or a molded seal for specialized machinery, our engineering team can work from your drawings, CAD files, or samples to develop a prototype and production run tailored to your exact specifications and performance needs.
Q: How should I store spare rubber gaskets to ensure their shelf life?
A: Proper storage is key to preserving the properties of rubber gaskets. Store them in a cool, dark, and dry environment, ideally at temperatures between 10°C and 25°C (50°F and 77°F). Avoid exposure to direct sunlight, UV light, ozone sources (like electric motors), and extreme temperature fluctuations. Keep gaskets away from heat sources and store them in sealed, opaque bags to minimize air exposure. Do not hang or stretch gaskets, as this can cause permanent deformation. Following these guidelines, most Kaxite gaskets will maintain optimal performance for several years in storage.
