PTFE Packing, also known as Polytetrafluoroethylene packing or Teflon® packing, is a premier sealing solution engineered to handle the most demanding industrial applications. Its exceptional chemical inertness, outstanding temperature resistance, and remarkably low coefficient of friction make it the material of choice for sealing aggressive chemicals, hot media, and ensuring smooth, low-torque operation in pumps and valves. Unlike traditional fibrous or elastomeric packings, PTFE packing maintains its integrity across a vast spectrum of operating conditions, providing long-lasting, reliable sealing performance with minimal maintenance requirements. At Kaxite, we specialize in manufacturing high-performance PTFE packing solutions that are precision-engineered to exceed industry standards and deliver unparalleled value to our clients.
Our product line at Kaxite is designed to meet specific application needs. Below are the detailed specifications for our core PTFE packing styles.

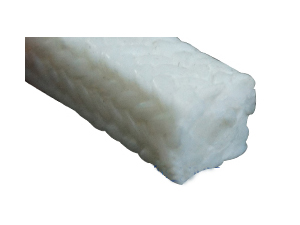

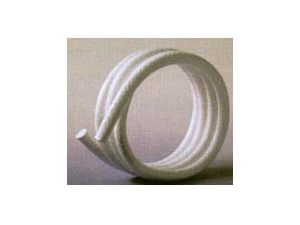

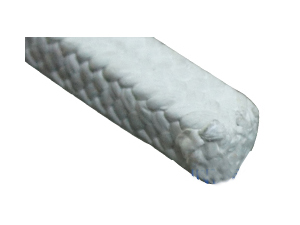

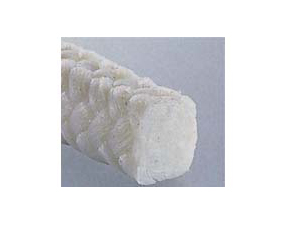

| Feature / Property | Pure PTFE Yarn | PTFE/Aramid | Expanded PTFE (ePTFE) |
|---|---|---|---|
| Chemical Resistance | Excellent (Best) | Very Good | Excellent |
| Thermal Conductivity | Low | Moderate | Very Low |
| Compressibility / Conformability | Good | Fair | Excellent (Best) |
| Mechanical Strength & Abrasion Resistance | Good | Excellent (Best) | Fair |
| Primary Use Case | Aggressive Chemicals, High Purity | High-Speed Rotary, General Service | Valve Stems, Low-Stress Sealing |
| Kaxite Product Code | KX-PT100 | KX-PTA200 | KX-EPT300 |
Proper installation is critical to achieving the maximum service life from your PTFE packing. Follow these Kaxite-recommended steps:
Q: Can PTFE packing be used for both rotary and reciprocating pump shafts?
A: Yes, PTFE packing is versatile and suitable for both rotary and slow-speed reciprocating applications. For high-speed rotary service, styles like our Kaxite PTFE-impregnated aramid (KX-PTA200) are specifically engineered to handle the frictional heat and dynamic forces, while pure PTFE or ePTFE is often preferred for reciprocating and valve stem applications. The key is selecting the correct style and density for the specific motion and speed.
Q: How do I know if my PTFE packing needs to be replaced or re-tightened?
A: Signs that your PTFE packing requires attention include a significant increase in leakage beyond the normal weepage (a steady stream), excessive heat generation at the stuffing box, a noticeable increase in power consumption or shaft torque, or visible physical damage to the packing upon inspection. Regular maintenance checks should monitor leakage rate and box temperature. Re-tightening should be done cautiously in small increments. If leakage cannot be controlled after adjustment, a full replacement is necessary.
Q: Is there a break-in procedure required for new PTFE packing?
A: Absolutely. A proper break-in, or run-in, period is essential for PTFE packing to seat properly and perform efficiently. After initial finger-tight installation, start the equipment and allow it to run for 10-15 minutes. Then, tighten the gland nuts evenly in very small increments (typically 1/8 to 1/4 of a turn) until the leakage is reduced to a controlled drip or weep. This process may need to be repeated over several hours of operation. The goal is to achieve a stable balance between minimal leakage and low friction.
Q: What are the main differences between PTFE packing and graphite packing?
A: While both are high-performance materials, key differences exist. PTFE packing offers superior chemical resistance to a wider range of chemicals, especially strong oxidizing agents that can attack graphite. It is also inherently self-lubricating with a lower friction coefficient. Graphite packing, on the other hand, typically handles higher temperatures (up to 450°C+ in inert atmospheres) and has better thermal conductivity, which helps dissipate frictional heat. Graphite can be less suitable for highly oxidizing environments or applications requiring absolute purity. The choice depends on the specific temperature, chemical, and mechanical requirements.
Q: Why should I choose Kaxite PTFE packing over other brands?
A: Kaxite PTFE packing is manufactured under rigorous quality control using premium, traceable raw materials. Our formulations are optimized for specific service conditions, ensuring you get a packing that performs predictably. We offer a wider range of specialized styles (like our KX-EPT300 for valves) and provide comprehensive technical data and support to help you select the perfect product. Furthermore, our packing is engineered for longevity, reducing your total cost of ownership through extended service intervals and reliable operation, backed by our decades of industry expertise.
