What Are Serrated Gaskets?

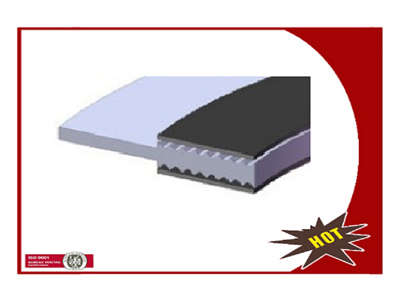

In the demanding world of industrial sealing, where pressure, temperature, and corrosive media are constant challenges, a specific type of sealing solution stands out for its exceptional bite and holding power: the Serrated Gaskets. Unlike standard flat gaskets, serrated gaskets feature a unique concentric or spiral pattern of raised ridges or "teeth" machined onto one or both sealing faces. This design is engineered to create multiple, high-intensity sealing lines, offering superior performance in high-load applications where conventional gaskets might fail. At Kaxite, we have refined the manufacturing and application of these critical components, leveraging decades of material science and engineering expertise to deliver unmatched reliability.

The fundamental principle behind a serrated gasket is concentrated sealing force. When bolted between two flanges, the sharp teeth embed themselves into the flange surface. This plastic deformation creates a series of extremely tight, labyrinth-like seals that effectively block fluid or gas passage. This makes them particularly effective for applications involving high internal pressure, vacuum conditions, or where flange surface finishes are less than ideal. Kaxite's serrated gaskets are precision-engineered to ensure each tooth contributes to a uniform, leak-free barrier, providing a security that operations managers and maintenance engineers can depend on.

Key Features and Advantages of Kaxite Serrated Gaskets

Kaxite's serrated gaskets are not just metal rings with grooves; they are sophisticated sealing devices designed for peak performance. Here are their core advantages:

• Exceptional Sealing Under High Pressure and Temperature: The multiple sealing lines allow them to maintain integrity where gasket stress relaxation occurs, common in high-temperature services.
• Excellent Creep Resistance: The design and material choice minimize the tendency of the gasket material to slowly deform under load and temperature over time, ensuring a lasting seal.
• Effective on Imperfect Flanges: The teeth can compensate for minor flange warping, scratches, or surface irregularities that would cause leaks with a flat gasket.
• Lower Required Bolt Load: Compared to some flat solid metal gaskets, serrated gaskets often achieve an effective seal with a lower initial bolting force, reducing flange stress.
• Reusability (in some designs): Certain Kaxite serrated gasket types, especially double-serrated versions, can be reused for a limited number of cycles if handled carefully, offering cost savings.
• Wide Material Compatibility: Available in various metals to suit different corrosive environments and thermal requirements.

Detailed Product Specifications and Parameters

Selecting the correct serrated gasket requires careful attention to its specifications. Kaxite provides comprehensive data to ensure perfect compatibility with your system.

Standard Materials of Construction

Kaxite serrated gaskets are manufactured from a range of high-quality metals and alloys to meet diverse service conditions.

Design Types & Geometry

Kaxite offers several standard serration patterns and cross-sections. The choice depends on pressure, flange type, and required sealing performance.

Critical Dimensions & Standards

Kaxite serrated gaskets are manufactured to international standards to ensure interchangeability and fit.

• Standards Compliant: ASME B16.20, API 6A, DIN 2696, and customer-specific drawings.
• Nominal Pipe Size (NPS): Available from 1/2" to 48" and beyond.
• Pressure Class Ratings: 150, 300, 600, 900, 1500, 2500 lbs as per ASME B16.5.
• Thickness (Ring Gasket): Typically 1/16", 1/8", 3/16", 1/4". Thicker gaskets for higher pressure classes.
• Serration Specifications:
  • Teeth per Inch (TPI): Commonly 24, 32, or 44 TPI. Finer teeth for higher pressures.
  • Tooth Depth: Usually between 0.012" to 0.025".
  • Tooth Angle: Standard V-angle is 90 degrees.

Frequently Asked Questions (FAQ) About Serrated Gaskets

Q: When should I choose a serrated gasket over a standard flat ring gasket or a spiral wound gasket?

A: Serrated gaskets are the preferred choice for high-pressure and high-temperature applications (often above 300 psi and 500°F) where a metal-to-metal seal is required. They outperform standard flat rings under cyclic loading and temperature fluctuations. Compared to spiral wound gaskets, serrated gaskets offer a more rigid, all-metal seal with higher blowout resistance and are often used in smaller sizes or for specific services like heat exchangers, valves, and pump flanges. Spiral wound gaskets, with their filler material, are better for wider flange tolerances and lower bolt loads.

Q: What is the difference between concentric and spiral serrations, and how do I choose?

A: Concentric serrations have circular rings, while spiral serrations have a single continuous groove. Concentric serrations are more common and suitable for most high-pressure static sealing applications. Spiral serrations create a longer, more tortuous path for any potential leak, making them ideal for sealing hazardous, toxic, or very expensive fluids where even a minute leak is unacceptable. The choice often depends on industry practice and specific service requirements.

Q: Can Kaxite serrated gaskets be reused after disassembly?

A: Reusability is limited and depends on the condition. Double serrated gaskets can sometimes be reused if the teeth are not excessively flattened, the gasket is not corroded, and the flanges are in good condition. It is generally not recommended for critical service. Single serrated or gaskets used in very high-pressure services should not be reused. Kaxite always recommends consulting engineering guidelines and performing a visual inspection. For critical applications, replacement with a new Kaxite gasket is the safest practice.

Q: What flange surface finish is required for a serrated gasket to seal properly?

A: Serrated gaskets are forgiving but perform best with a specific finish. A flange surface finish between 125 to 250 microinches Ra (3.2 to 6.3 µm Ra) is typically ideal. This provides enough "tooth" for the gasket ridges to bite into without being so rough that it prevents uniform embedding. A mirror-finish surface is not suitable, as the teeth cannot grip. The flange face must also be free of deep pitting, radial scratches, and warpage.

Q: How do I determine the correct material grade for my application?

A: Material selection is critical and depends on three main factors: the chemical composition of the media being sealed (to prevent corrosion), the operating temperature range, and the pressure. Standard services like steam, water, and oil may use Soft Iron or 304 SS. For chlorides, acids, or seawater, 316 SS, Alloy 20, or Monel are considered. For extreme high temperatures, Inconel or other nickel alloys are necessary. Kaxite's technical team can assist with material selection based on your complete service conditions.

Q: Are there special installation torquing procedures for serrated gaskets?

A: Yes, proper installation is key. Use a calibrated torque wrench and follow a cross-bolting pattern (e.g., star pattern) to ensure even compression. Torque values should be based on the bolt material, size, and gasket type—refer to ASME PCC-1 guidelines or the equipment manufacturer's specifications. Avoid over-torquing, as this can shear off the teeth or damage the flanges. The goal is to achieve sufficient embedment of the teeth without crushing the gasket body. Kaxite provides recommended bolt load data for our gaskets upon request.

Typical Applications of Kaxite Serrated Gaskets

The robustness of Kaxite serrated gaskets makes them indispensable across heavy industries. Their primary role is to create a secure, leak-tight seal in static flange connections under strenuous conditions.

• Oil & Gas Production & Refining: Wellhead equipment, Christmas trees, manifold flanges, high-pressure valve bonnets, compressor stations, and refinery process lines handling crude, gas, and sour service (H2S containing) fluids.
• Power Generation: High-pressure steam lines, turbine flanges, boiler feedwater systems, and heat recovery steam generators (HRSGs) in fossil fuel and nuclear plants.
• Chemical & Petrochemical Processing: Reactors, high-pressure autoclaves, pump and mixer flanges, and pipelines carrying aggressive acids, alkalis, and solvents.
• Heat Exchangers & Pressure Vessels: Shell-and-tube heat exchanger channels and covers, where they seal against the flat tubesheet. Also used on vessel manways and nozzles.
• Marine & Offshore: Seawater cooling systems, hydraulic lines, and subsea equipment interfaces where reliability is paramount.
• Pulp & Paper and Heavy Manufacturing: High-pressure hydraulic systems, digester vessels, and equipment in cyclical thermal service.
