In the demanding world of industrial sealing and packing, precision, durability, and efficiency are non-negotiable. The core of producing high-quality braided packing materials lies in the machinery that creates it. At Kaxite, we have dedicated decades to engineering and refining Machines for Braiding Packing that set the benchmark for the industry. Our equipment is designed to meet the rigorous needs of global manufacturers, delivering consistent, high-output production of sealing materials used in pumps, valves, and reactors across sectors like chemical processing, marine, oil & gas, and power generation.
Kaxite braiders are more than just machines; they are integrated production solutions. We understand that your productivity depends on reliability, ease of operation, and the ability to work with a diverse range of fibers—from traditional aramid and graphite to modern PTFE and carbon. Our focus on robust construction, intelligent control systems, and adaptable design ensures that our braiding machines not only meet but exceed operational expectations, providing a rapid return on investment through superior performance and minimal downtime.
Selecting the right braiding equipment requires a clear understanding of its capabilities. Below are the detailed parameters that define the performance and scope of our standard and custom Machines for Braiding Packing.
| Feature | Specification | Description / Benefit |
|---|---|---|
| Drive System | AC Servo Motors | Provides precise speed control, smooth acceleration/deceleration, and high energy efficiency. Enables programmable braiding patterns. |
| Control Interface | Touchscreen HMI (Human-Machine Interface) | User-friendly PLC-based control. Allows storage of multiple recipes, real-time monitoring of speed, tension, and length, and diagnostic alerts. |
| Maximum Braiding Speed | Up to 120 RPM (carrier revolutions per minute) | Optimizes production output without compromising braid uniformity or quality. |
| Yarn Tension System | Individual Spring or Magnetic Tensioners | Ensures consistent tension across all carriers, critical for producing packing with uniform density and performance characteristics. |
| Power Requirements | 380V / 480V, 3-Phase, 50/60 Hz | Standard industrial power configuration. Options available for other regional standards. |
| Noise Level | < 75 dB(A) | Designed for a safer and more comfortable working environment. |
Q: What is the primary advantage of using a modern braiding machine like those from Kaxite over older equipment?
A: Modern Kaxite braiders offer superior consistency, speed, and control. The integration of servo drives and PLC controls ensures every meter of packing has identical braid angle, density, and tension. This results in a more reliable sealing product, reduces material waste, and significantly boosts production throughput compared to mechanically-driven, manually-adjusted older machines.
Q: How do I determine the correct number of carriers (e.g., 24, 32, 48) needed for my production?
A: The carrier count influences the braid's density, coverage, and the range of producible diameters. A 16 or 24-carrier machine is excellent for finer, more flexible packing. For standard industrial packing requiring a good balance of density and flexibility, 32 or 48 carriers are typical. High-density, large-diameter packing for severe service often requires 64 carriers. The Kaxite team can analyze your target product specifications to recommend the optimal model.
Q: Can your machines handle high-modulus fibers like carbon or aramid without excessive wear?
A: Absolutely. Kaxite machines are built with this in mind. Key contact points like guides, tensioners, and carriers are fitted with specialized ceramic or hardened steel components to minimize abrasion from tough fibers. This design preserves fiber integrity and drastically reduces particulate generation, which is crucial for maintaining the quality of the braid and the performance of the final packing material.
Q: What is the role of the PLC and touchscreen interface in daily operation?
A: The PLC is the brain of the machine. It precisely coordinates the speed of the carriers, the take-up system, and any core insertion. The touchscreen interface allows operators to easily input parameters like desired length, braiding speed, and tension. It stores "recipes" for different products, enabling fast changeovers. It also provides vital diagnostics, alerting operators to issues like yarn breakage or low tension, which minimizes downtime and scrap.
Q: Is it possible to integrate a braiding machine with other downstream processes?

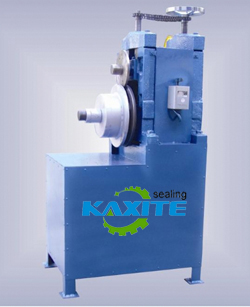

A: Yes, Kaxite specializes in creating integrated production lines. Our braiders can be seamlessly coupled with downstream equipment such as impregnation tanks for adding lubricants, drying ovens, calendering rollers for shaping, and laser measurement systems for real-time diameter verification. This creates a continuous, automated line that maximizes efficiency and consistency from raw yarn to finished coil or spool.
Q: How does the tension control system work, and why is it so critical?
A: Consistent yarn tension is the single most important factor for producing uniform braided packing. Kaxite machines use individual tensioners on each carrier. As the yarn pays off the bobbin, the tensioner provides a calibrated, adjustable drag. The PLC system can monitor this tension. If one yarn breaks or has significantly different tension, it affects the braid's tightness and can cause defects. Our system ensures all yarns contribute equally, guaranteeing a product with homogeneous density and mechanical properties.
Q: What kind of training and after-sales support does Kaxite provide?
A: Kaxite provides comprehensive support. This includes detailed installation supervision by our engineers, on-site operational and maintenance training for your technicians, and a complete set of manuals (electronic and printed). We offer remote support via video link and maintain a global network of service partners for prompt on-site assistance. A standard warranty covers parts and workmanship, with extended service contracts available.
Q: Can Kaxite customize a braiding machine for a unique or proprietary packing design?

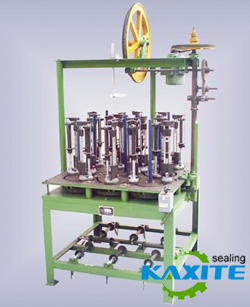

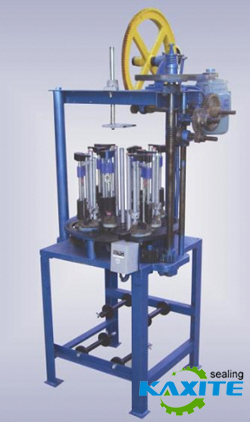

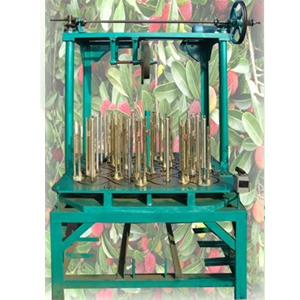

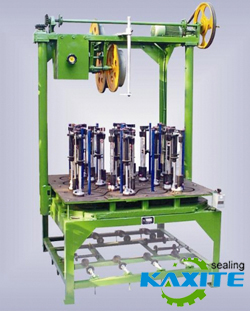

A: Customization is a cornerstone of our service. Whether you need a non-standard carrier count, a unique braiding pattern (like a 3D or square braid), a special take-up mechanism for a specific package format, or compatibility with an unusual fiber, our engineering team can design and build a solution. We collaborate closely with clients from the concept phase through to production testing to ensure the machine perfectly meets their specialized requirements.
Investing in a Kaxite braiding system is an investment in the future of your manufacturing capability. Our machines are engineered not just for today's materials but for the innovations of tomorrow. The modular design allows for future upgrades, and our commitment to R&D means you benefit from ongoing technological improvements. From the heavy-duty chassis that ensures years of stable service to the sophisticated software that provides unparalleled control and data tracking, every aspect is crafted for excellence.
We invite you to contact the Kaxite engineering team to discuss your specific braided packing production goals. By providing details on your target diameters, fibers, output volumes, and any special processes, we can configure the ideal machine or complete system to enhance your productivity, quality, and profitability.
