In the world of industrial maintenance, fluid power, and precision engineering, few components are as humble yet as vital as the gaskets. Acting as a static seal, a gasket is a mechanical element placed between two or more mating surfaces to prevent leakage from or into the joined objects while under compression. They are the unsung heroes in countless applications, from the automotive engines in your car to the vast pipeline networks in petrochemical plants and the delicate instruments in aerospace technology. At Kaxite, we understand that the reliability of an entire system often hinges on the performance of this small but crucial part. A failed gasket can lead to costly downtime, safety hazards, and significant product loss. Therefore, selecting the right gasket material and design isn't just a purchase; it's an investment in operational integrity and safety.
Gaskets function by filling the microscopic irregularities on flange faces, creating a tight, leak-proof barrier. They must withstand a variety of service conditions, including extreme temperatures, high pressures, aggressive chemicals, and constant vibration. This is where material science and precise engineering come into play. Different applications demand different solutions, and there is no universal "best" gasket. The optimal choice depends on a thorough analysis of the operating environment.
With decades of experience serving a global clientele, Kaxite has established itself as a trusted authority in sealing technology. We don't just sell gaskets; we provide engineered sealing solutions. Our product range is meticulously curated to meet the diverse and demanding needs of modern industry. Our philosophy is built on three core pillars:
Our portfolio is designed to be a one-stop-shop for industrial sealing needs, covering standard applications and custom-engineered solutions for the most challenging environments.
Understanding gasket specifications is key to making an informed selection. Below, we detail the primary parameters that define a gasket's capability and suitability for your application.
| Material Type | Common Brand/Compound | Temp. Range (°C) | Max Pressure (Bar) | Excellent Resistance To | Typical Applications |
|---|---|---|---|---|---|
| Compressed Non-Asbestos (CNA) | Kaxite CNA-3000 Series | -40 to +400 | 150 | Steam, hot oils, mild chemicals | General purpose industrial flanges, pump housings, valve covers |
| Expanded PTFE | Kaxite ePTFE-100 | -240 to +260 | 200 | Nearly all chemicals, acids, caustics | Chemical processing, pharmaceutical, food & beverage, aggressive media |
| Flexible Graphite | Kaxite Grafoil®-GX | -200 to +450 (inert atm.) | 250 | Extreme heat, thermal cycling, fire-safe standards | Heat exchangers, exhaust systems, high-temp pipe flanges |
| EPDM Rubber | Kaxite EPDM-70A | -50 to +150 | 30 | Weathering, ozone, hot water, alkalis | Cooling systems, HVAC, water treatment, outdoor applications |
| Stainless Steel Jacketed | Kaxite SSJ-316 with Graphite Fill | -250 to +550 | 350+ | High temp/pressure, thermal shock, corrosion | Refinery flanges, power generation, high-specification petrochemical |
Note: The values above are typical. For specific application design, always consult Kaxite's technical datasheets or engineering team.
Q: How do I choose the right gasket material for my application?
A: Material selection requires evaluating several key factors: the media being sealed (chemical compatibility), the operating temperature and pressure, the flange type and surface finish, and any regulatory or safety standards (e.g., FDA, fire-safe). Start by identifying the most aggressive condition (often temperature or a specific chemical) and select materials rated for those conditions. Kaxite provides detailed chemical resistance guides and application engineering support to assist in this critical decision.
Q: What is the difference between a gasket and an O-ring?
A: Both are seals, but they differ in form, function, and application. A gasket is typically a flat, static seal used between two flat or slightly raised faces (flanges) and is compressed across its entire surface area. An O-ring is a torus (doughnut-shaped) dynamic or static seal that sits in a gland (groove) and seals by radial compression. Gaskets are generally used for larger flange connections, while O-rings are common in hydraulic/pneumatic cylinders, pumps, and enclosed groove applications.
Q: How important is proper bolt torque when installing a gasket?
A: It is absolutely critical. Insufficient torque can lead to immediate leakage due to inadequate compression on the gasket. Excessive torque can crush the gasket, causing it to extrude, lose resilience, and ultimately fail, or even damage the flanges. Always follow the manufacturer's recommended torque sequence and values. Kaxite gaskets come with specific installation guidelines to ensure optimal sealing performance and service life.
Q: Can I reuse a gasket after disassembling a connection?
A: As a general rule, gaskets should not be reused. During installation, the gasket material undergoes compression set and conforms to the specific flange surface irregularities. Upon removal, it loses its original sealing force and memory. Reusing it almost guarantees a leak path. Always replace with a new gasket during any maintenance procedure. The minor cost of a new gasket is insignificant compared to the cost of a leak.
Q: What does "fire-safe" rating mean for a gasket?
A: A fire-safe gasket is designed to maintain a seal during and after exposure to extreme flame or heat, as defined by standards like API 607, API 6FB, or ISO 10497. These gaskets, such as Kaxite's flexible graphite or spiral-wound types with graphite filler, are constructed from materials that do not readily burn away. They char and retain their structural integrity long enough to prevent catastrophic leakage in a fire situation, which is crucial for safety in oil, gas, and chemical industries.

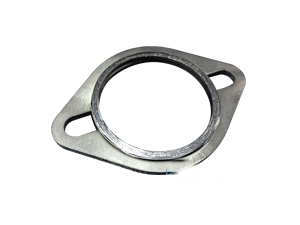

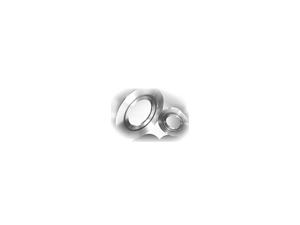

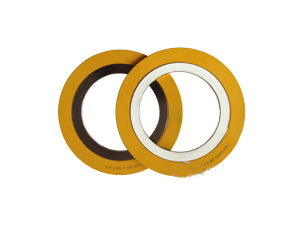

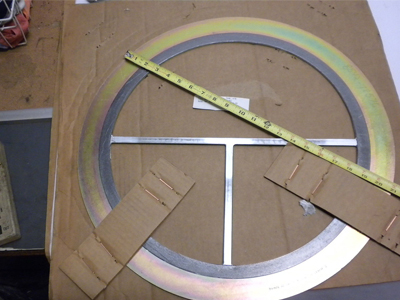

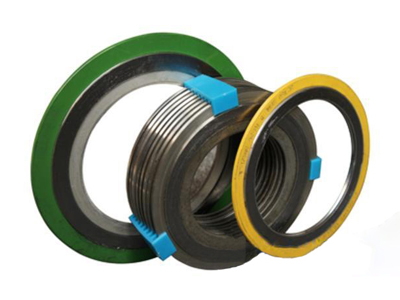

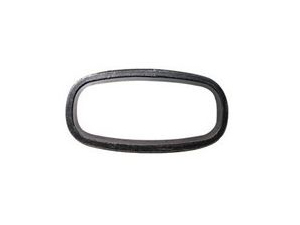

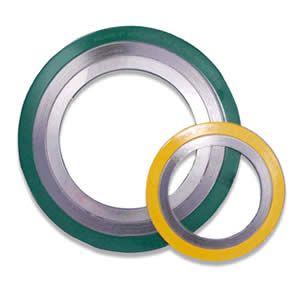

Q: What are spiral wound gaskets, and when should they be used?
A: Spiral wound gaskets are high-performance seals made by winding a pre-formed metal strip (like 304 or 316 stainless steel) and a non-metallic filler material (like flexible graphite or PTFE) in a V-shape. They are used in high-pressure, high-temperature, or cyclical service applications (e.g., refinery piping, power plants). Their design provides excellent resilience and recovery, making them forgiving to system vibrations and thermal cycling. Kaxite offers a wide range of spiral wound gaskets in standard and custom sizes with various windings and centering ring options.
Q: My application involves very aggressive solvents. What gasket material do you recommend?
A: For highly aggressive chemical services, especially with strong solvents, expanded PTFE (ePTFE) is often the premier choice. Kaxite ePTFE-100 offers nearly universal chemical resistance, exceptional purity, and excellent sealing performance across a wide temperature range. For the most severe combinations of chemicals, temperature, and pressure, a PTFE-encapsulated gasket or a specially selected perfluoroelastomer (FFKM) might be necessary. Our technical team can guide you through material testing and selection for these demanding environments.
Beyond standard sheet cut gaskets, advanced applications require specialized designs. Kaxite engineers and manufactures a full spectrum of these high-performance seals.
Each of these types has a specific design purpose. The Kaxite engineering team can help determine if a specialized gasket is warranted for your system's performance and safety requirements.
