For engineers, designers, and procurement specialists navigating the demanding landscape of industrial materials, selecting the right polymer component is a critical decision. Among the myriad options, Polytetrafluoroethylene (PTFE) rod stands out as a cornerstone material for applications where extreme conditions are the norm. At Kaxite, with decades of specialized expertise in advanced fluoropolymer solutions, we manufacture premium-grade PTFE Rod that sets the benchmark for performance, reliability, and consistency. This comprehensive guide delves into the properties, specifications, and applications of our rods, providing the technical insight needed for your next project.

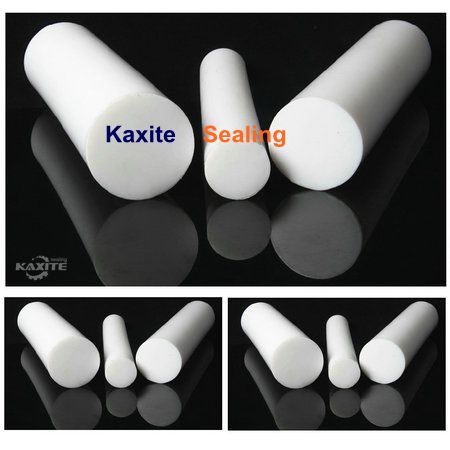

Kaxite's PTFE Rod is engineered from 100% virgin PTFE resin, ensuring optimal purity and performance. The intrinsic properties of PTFE make it an indispensable material across industries.
Our PTFE Rod is available in a comprehensive range of standard and custom sizes to meet precise design requirements. We adhere to strict quality control protocols, including ASTM D1710 and ISO 13000 standards.
| Rod Diameter (Inches) | Rod Diameter (mm) | Standard Length (Feet) | Standard Length (Meters) | Tolerance (ASTM D1710) |
|---|---|---|---|---|
| 1/4" | 6.35 | 2, 4, 6 | 0.61, 1.22, 1.83 | ±0.005" / ±0.13mm |
| 1/2" | 12.70 | 2, 4, 6 | 0.61, 1.22, 1.83 | ±0.005" / ±0.13mm |
| 3/4" | 19.05 | 2, 4 | 0.61, 1.22 | ±0.007" / ±0.18mm |
| 1" | 25.40 | 2, 4 | 0.61, 1.22 | ±0.010" / ±0.25mm |
| 2" | 50.80 | 2 | 0.61 | ±0.015" / ±0.38mm |
| 3" | 76.20 | 2 | 0.61 | ±0.020" / ±0.51mm |
Note: Custom diameters up to 8" (203.2mm) and lengths up to 8 feet (2.44m) are available upon request.
| Property | Test Method | Typical Value (Kaxite Virgin PTFE) | Units |
|---|---|---|---|
| Density | ASTM D792 | 2.15 - 2.20 | g/cm³ |
| Tensile Strength | ASTM D638 | 3,000 - 5,000 | psi |
| Elongation at Break | ASTM D638 | 300 - 500 | % |
| Compressive Strength | ASTM D695 | 1,700 | psi |
| Coefficient of Friction (Static) | ASTM D1894 | 0.05 - 0.08 | - |
| Dielectric Strength | ASTM D149 | 480 | V/mil |
| Continuous Service Temperature | - | -200 to +260 | °C |
| Melting Point | ASTM D4591 | 327 | °C |
Kaxite PTFE Rod is machined into critical components for numerous sectors. Its versatility allows it to be turned, milled, drilled, and ground to create custom parts with tight tolerances.
What is the main advantage of using a PTFE rod over metal rods for certain applications?
The primary advantages are corrosion resistance, self-lubrication, and electrical insulation. Unlike metals, PTFE will not corrode when exposed to chemicals, eliminates the need for external lubricants (reducing contamination), and effectively isolates electrical currents, making it superior in corrosive, clean, or electrically sensitive environments.
Can Kaxite PTFE rod be machined easily, and what are the best practices?
Yes, PTFE is readily machinable with standard metalworking tools, though its low thermal conductivity and softness require specific techniques. Use sharp, high-speed steel or carbide tools with high rake angles. Employ high cutting speeds, low feed rates, and light depths of cut to prevent material deformation and achieve a smooth finish. Proper clamping is essential to avoid distortion.
How does the temperature range of PTFE compare to other engineering plastics like Nylon or PVC?
PTFE offers a significantly broader usable temperature range. While Nylon may become brittle below -40°C and soften above 120°C, and PVC has a similar limited range, PTFE maintains its mechanical properties from cryogenic temperatures (-200°C) up to 260°C continuously. This makes it the only choice for applications experiencing extreme thermal cycling.
What is the difference between "virgin" and "reprocessed" PTFE rod, and which does Kaxite supply?
Virgin PTFE is manufactured from 100% new, first-use polymer resin, guaranteeing consistent purity, color (white), and optimal mechanical/chemical properties. Reprocessed (or recycled) PTFE contains reground PTFE scrap, which can introduce contaminants, cause color variation (often grey or off-white), and result in diminished mechanical strength and potential failure in critical applications. Kaxite exclusively supplies high-quality virgin PTFE rod to ensure maximum performance and reliability for our clients.
Are there FDA or other regulatory approvals for Kaxite PTFE rod in food or medical applications?
Our virgin PTFE rod is manufactured from resins that comply with FDA regulations 21 CFR 177.1550 for repeated food contact. It is also produced in facilities adhering to strict quality management systems. For specific medical device applications requiring USP Class VI certification or ISO 10993 biocompatibility testing, we offer specialized grades and can provide supporting documentation upon request.
Does Kaxite offer custom-colored or filled PTFE rod compounds?
Yes, in addition to our standard white virgin PTFE rod, Kaxite provides tailored solutions. We offer rods in various standard colors for coding or aesthetic purposes. More importantly, we supply performance-enhanced filled compounds, such as glass-filled PTFE for improved creep resistance, carbon-filled for superior conductivity and wear, and bronze-filled for enhanced thermal conductivity and load-bearing capacity. Contact our technical team to discuss your specific requirements.
What is the typical lead time for standard and custom-sized PTFE rods from Kaxite?
For standard diameters and lengths from our inventory, lead times are typically 3-5 business days for domestic orders. Custom diameters, large diameters (over 3"), or special filled compounds generally have a production lead time of 2-4 weeks, depending on the order volume and complexity. We prioritize urgent requests and provide transparent timelines upon order confirmation.
What quality assurance documentation does Kaxite provide with its PTFE rod shipments?
Every shipment from Kaxite includes a Certificate of Compliance (CoC) stating the material grade, dimensions, and confirming compliance with relevant specifications (e.g., ASTM D1710). For orders requiring full traceability, we can provide a detailed Material Test Report (MTR) with actual lot-specific test data for key properties. Our quality system is designed to meet the stringent demands of aerospace, pharmaceutical, and semiconductor industries.
